Stainless steel parallel tubes

Applicable models	format	Material	Outer diameter	Material thickness
Forced to exhaust	380-600MM	SUS 201/304	Φ5090-6090-50100-60100	0.3MM

Details>>

Stainless steel exhaust pipe

Applicable models	format	Material	Outer diameter	Material thickness
Forced to exhaust	Φ50(Φ60/Φ70)*380-600MM	SUS 201/304	Φ50-60-70	0.3MM

Details>>

Aluminum tubes with connectors bring out the smoke tube

Applicable models	format	Material	Outer diameter	Material thickness
Forced to exhaust	1-5M	SUS 201/304	Φ50-60-100-110-120-130	0.1MM

Details>>

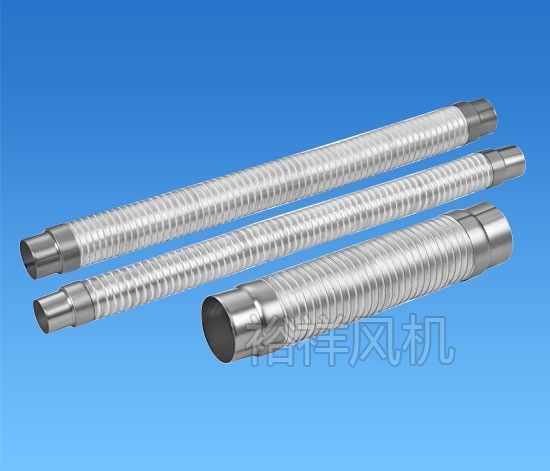

Exhaust tubes

Applicable models	format	Material	Outer diameter	Material thickness
Forced to exhaust	1-5M	SUS 201/304	Φ50-Φ60-Φ70-Φ90-Φ110-Φ120-Φ130	0.1MM

Details>>

The tubes extended period (with connector)

Applicable models	format	Material	Outer diameter	Material thickness
Forced to exhaust	1-5M	SUS 201/304	Φ50-60-100-110-120-130	0.1MM

Details>>

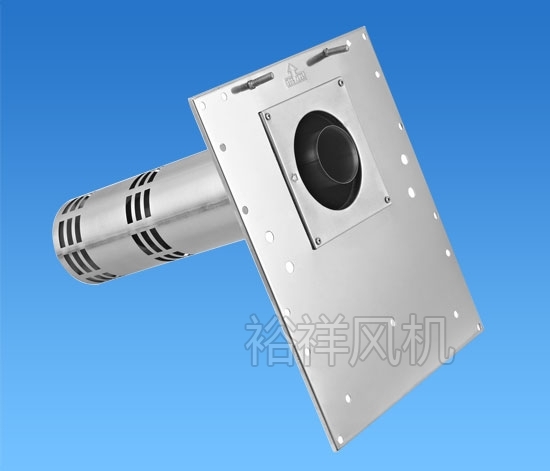

Back exhaust pipe

Applicable models	format	Material	Outer diameter	Material thickness
Forced to exhaust	Φ110Φ50555	SUS 201/304	Φ110*50	0.3MM

Details>>

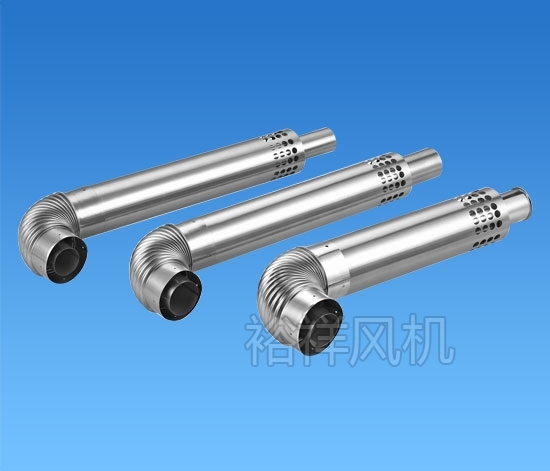

Stainless steel parallel tubes

Details>>

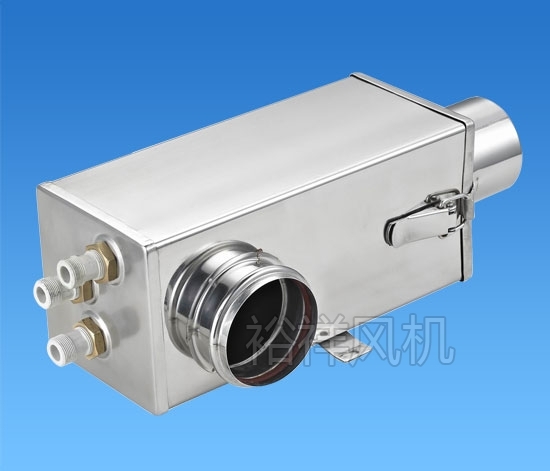

The secondary condensate heat exchanger LNQ-A (SUS304 #)

(1)The overall structure of the components of 304 # stainless steel material, attractive appearance and corrosion resistance;
(2)The internal coil choice of Ø20 stainless steel bellows, to ensure thermal conversion rate while increasing the water flow machine thermal efficiency of 15-20%;
(3)The inlet and outlet with bellows using high-frequency welding process, can withstand a 1.5-2.0Mpa water pressure and no leakage and abnormal noise;

Details>>

Parallel Pipe joints Series

Applicable models	format	Material	Outer diameter	Material thickness
Forced to exhaust	5000-1000MM	SUS 201	Φ9050/Φ9050/Φ110*60	0.3MM

Details>>
